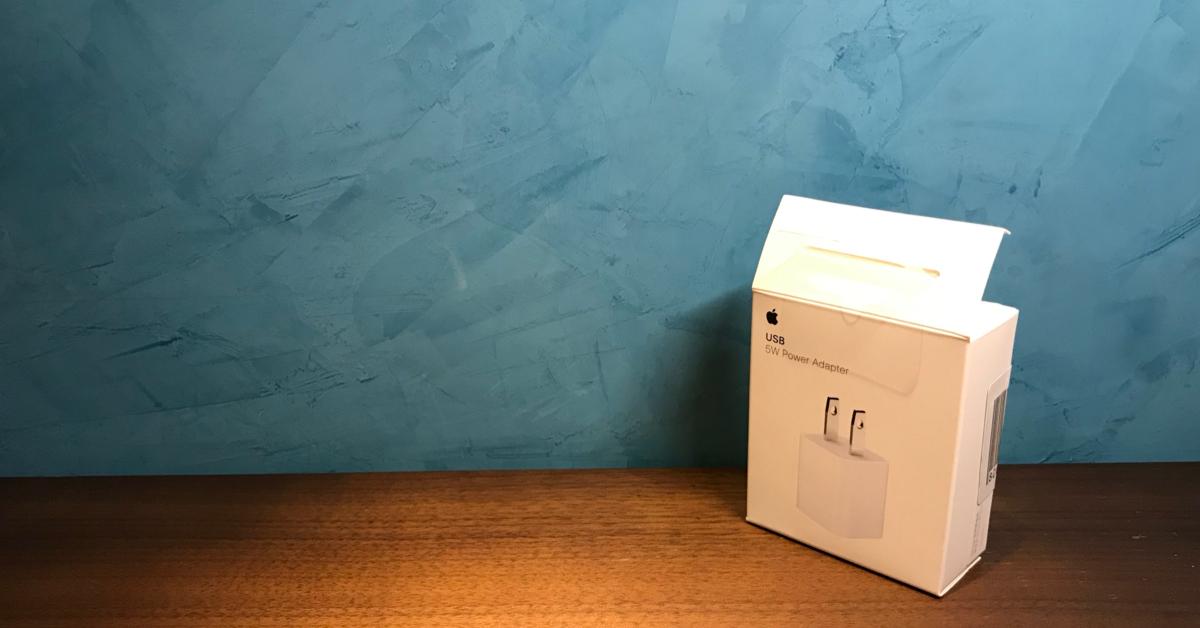

Front Appearance
The 'Apple 5W USB Power Adapter Box' uses 45-point white cardstock as the main body, printed with a matte finish, and features a plastic hanging card, with additional explanatory stickers.
Box outer dimensions: approximately 80*67*30 mm
Box inner dimensions: approximately 79*66*29.5 mm

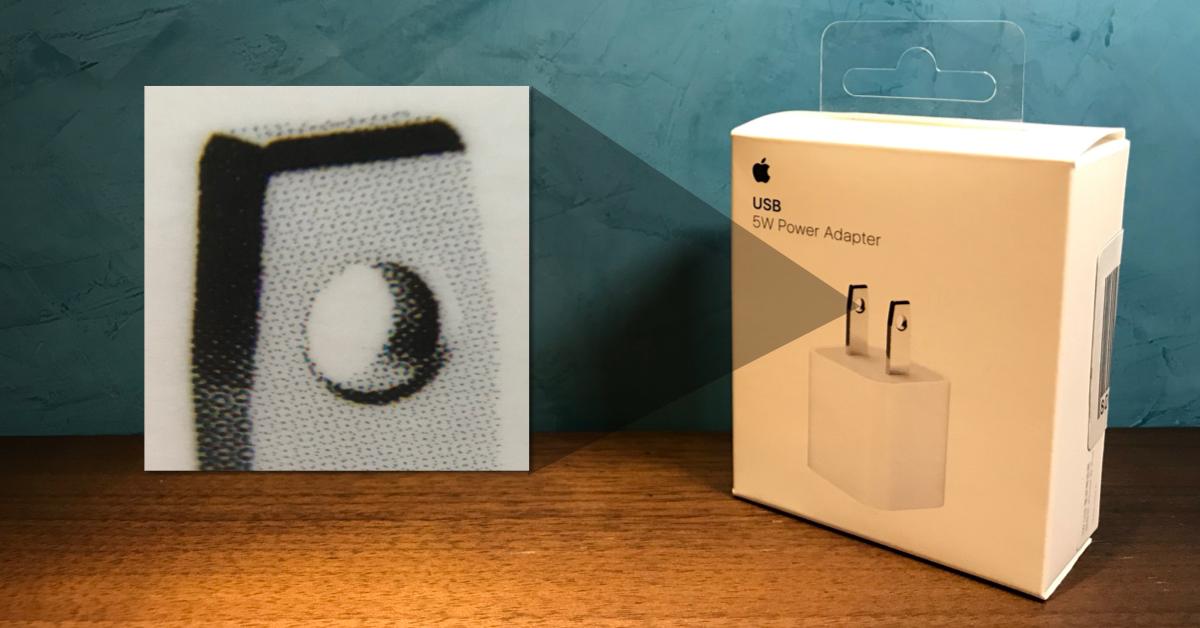

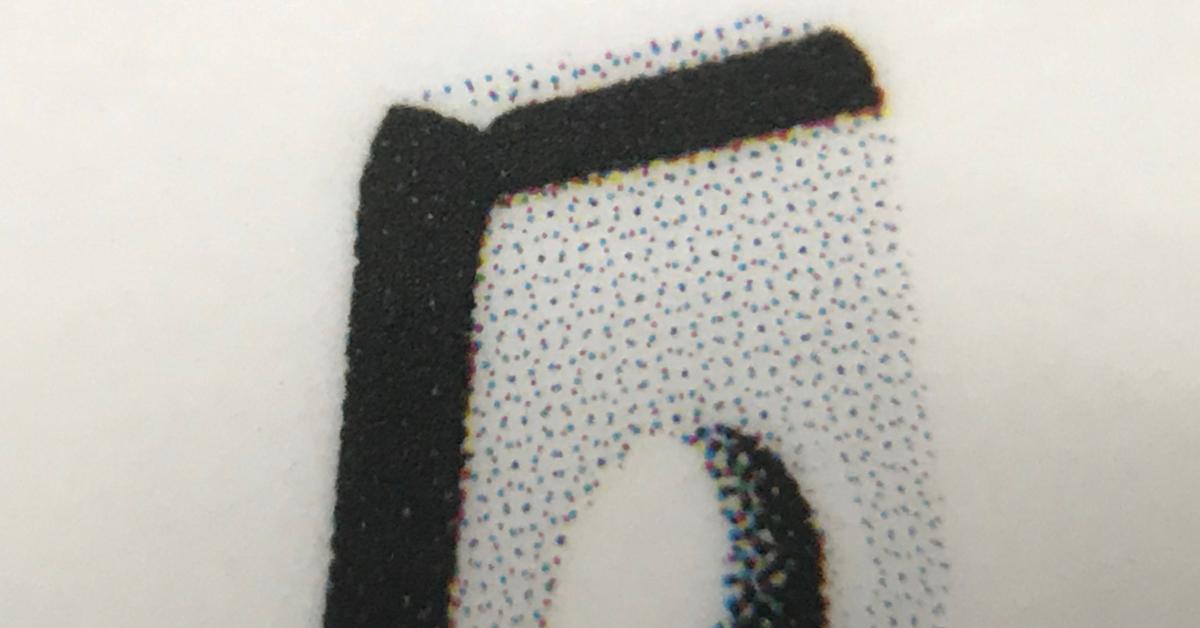

Printed Surface Magnified
When magnified, the printing dots can be clearly seen.

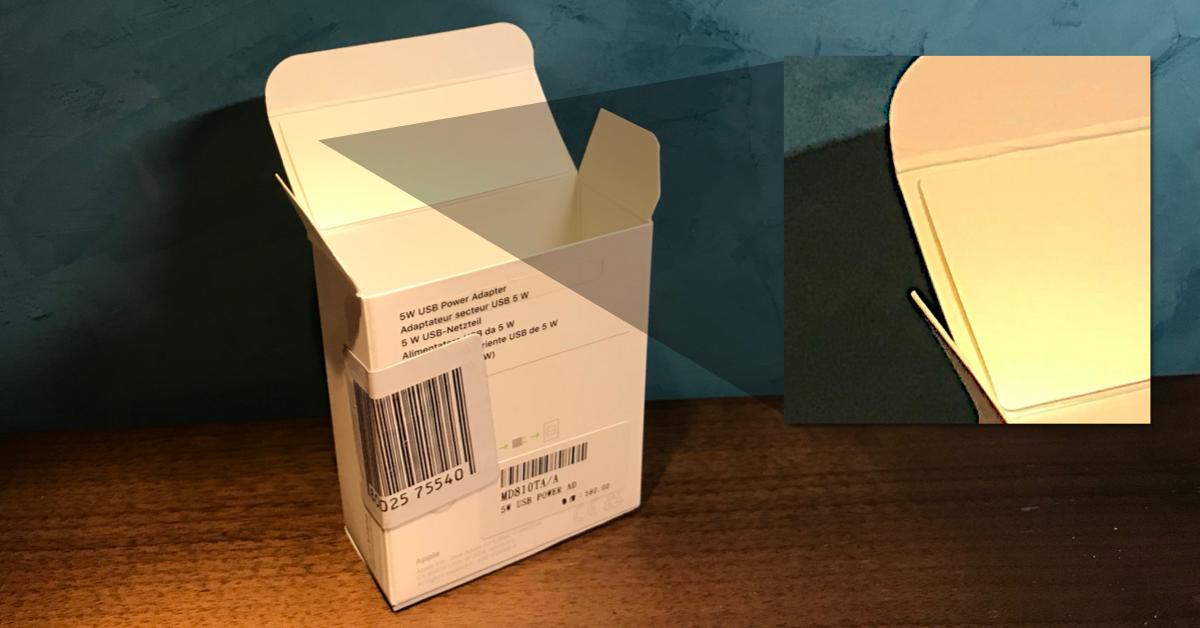

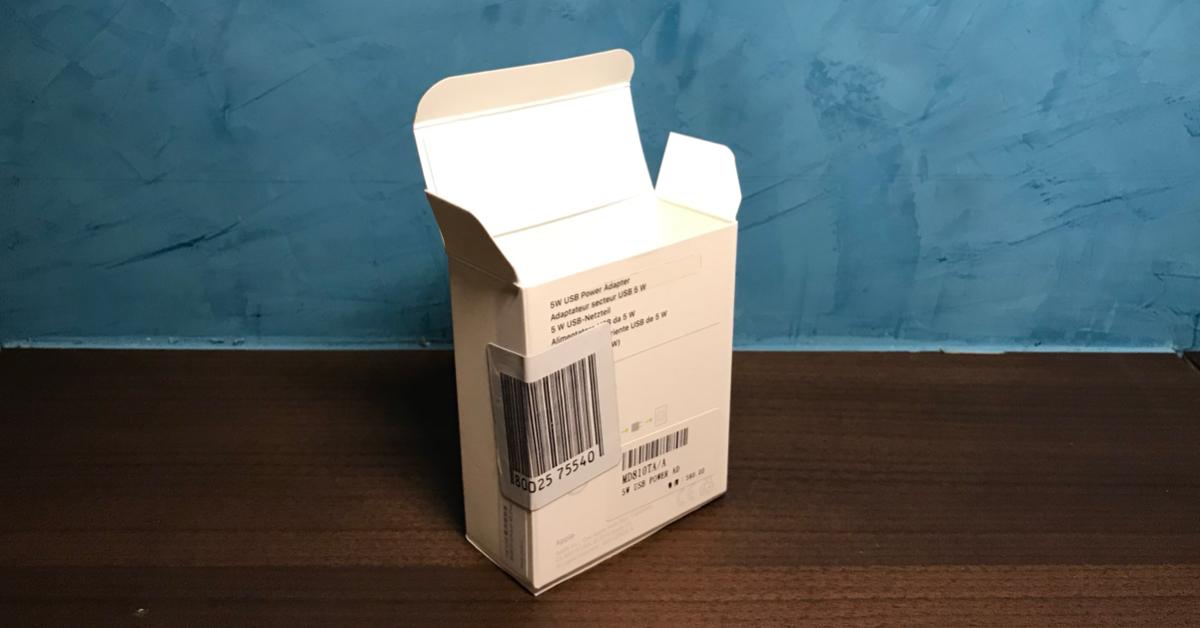

Box Lid Appearance
Uses a double-flap box design with a white card attached to hide the plastic piece, maintaining a complete visual appearance when the box is opened.

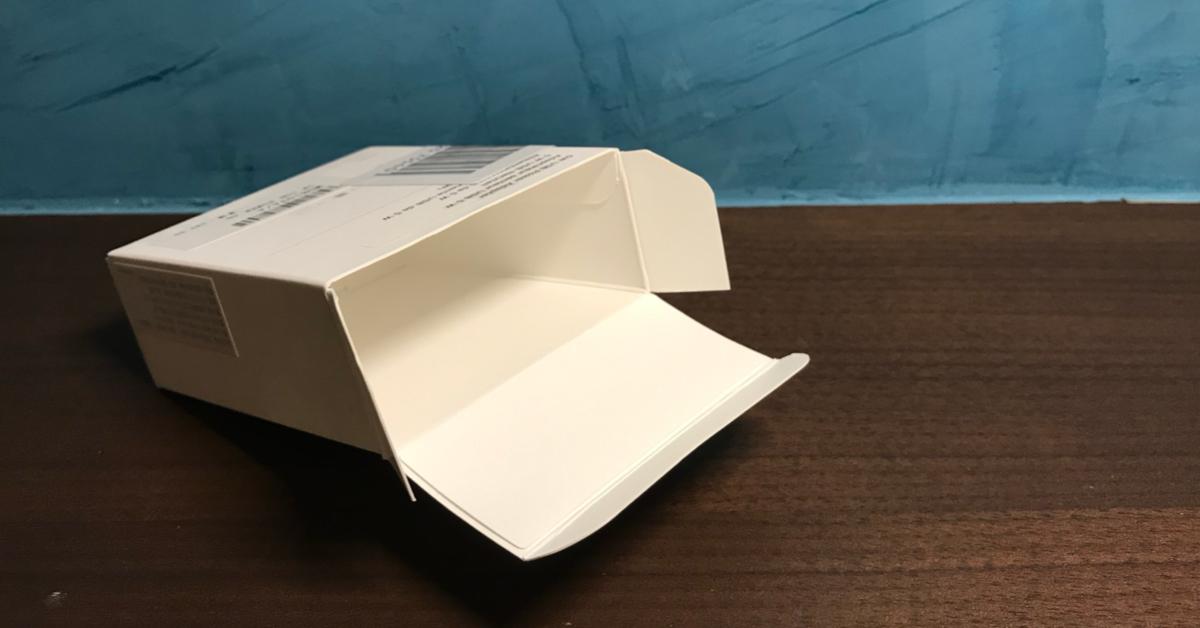

Box Bottom Appearance
The box bottom uses a sealed closure design. Initially, I tried to remove the product from this end, but after struggling to tear it open for a long time, it was completely impossible to open. The paper only showed slight deformation, which shows how strong the 'glue' used for the box bottom must be!

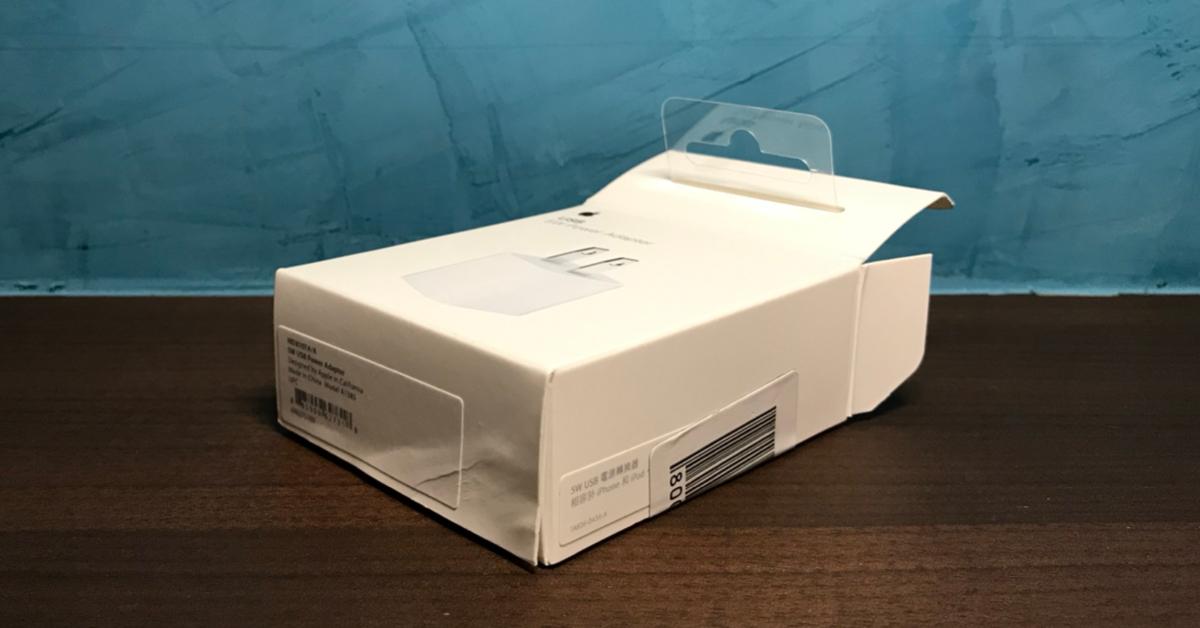

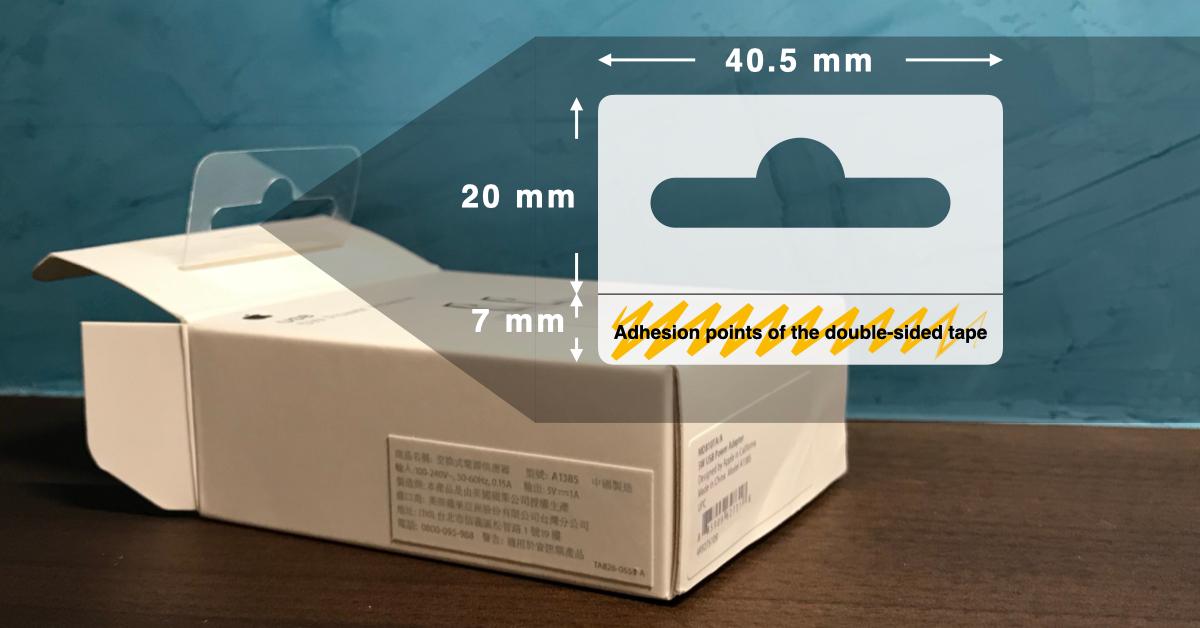

Hanging Loop
From the box's appearance, it can be seen that the plastic piece protrudes about 20 mm, with the rest attached to the inside of the box, creating a hanging loop for display on store shelves.
Plastic piece dimensions: approximately 40.5*27 mm

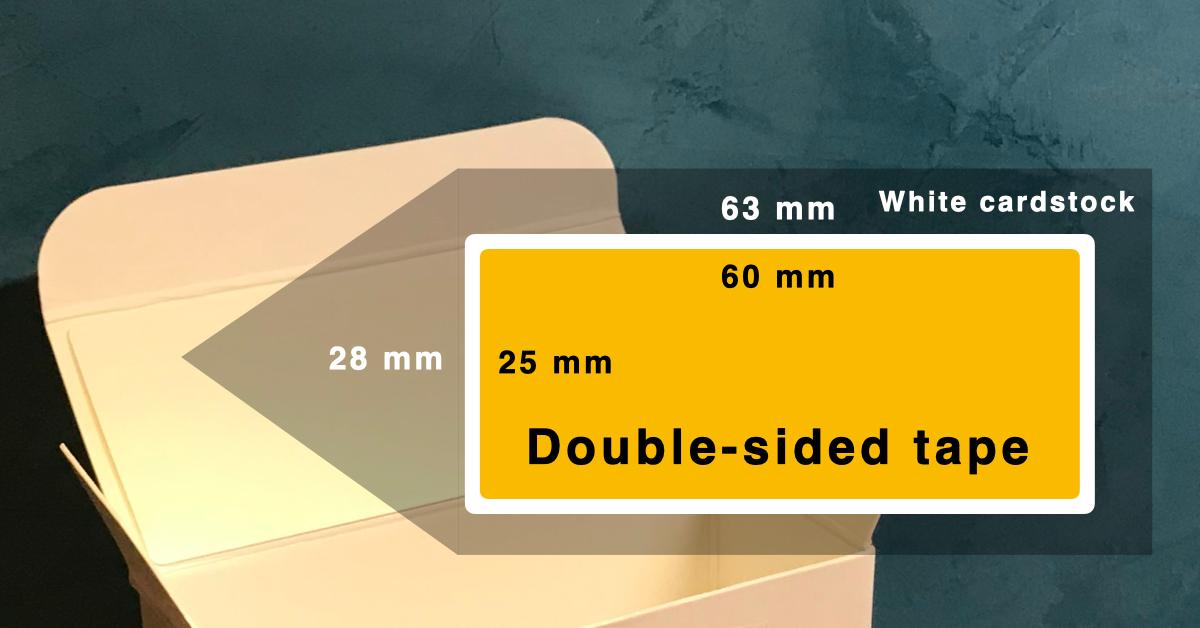

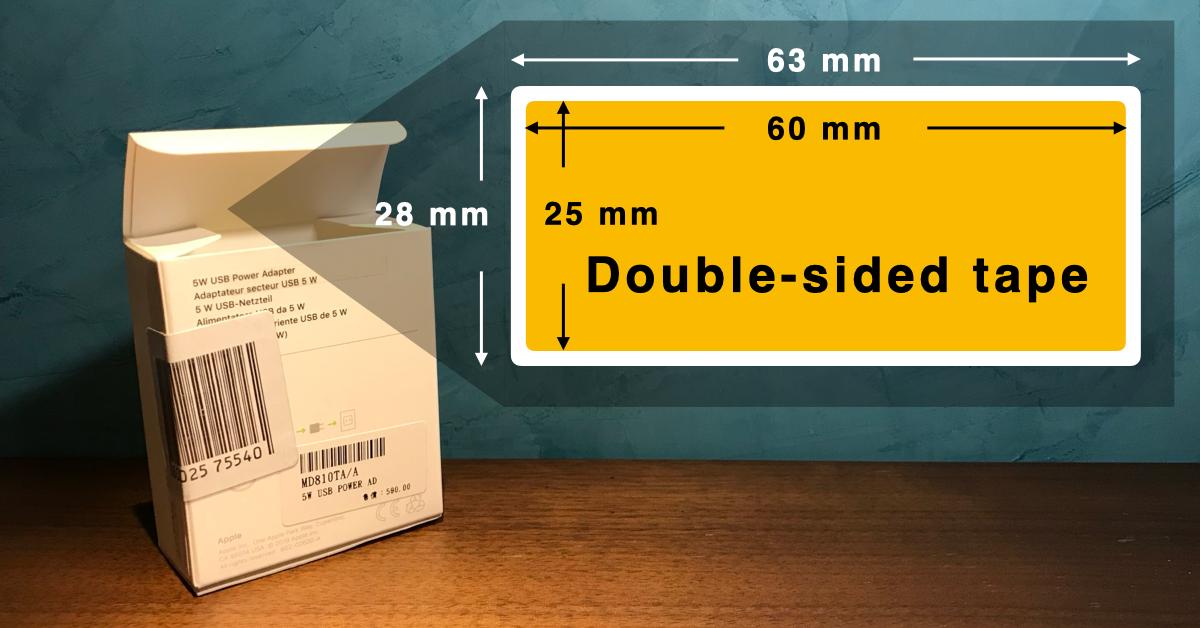

Hidden Hanging Loop Design
In the box design, to prevent excess plastic from showing, a white card is added from the inside to hide the excess plastic. Both the white card and double-sided tape feature rounded corner designs.
White card dimensions: approximately 63*26.5 mm

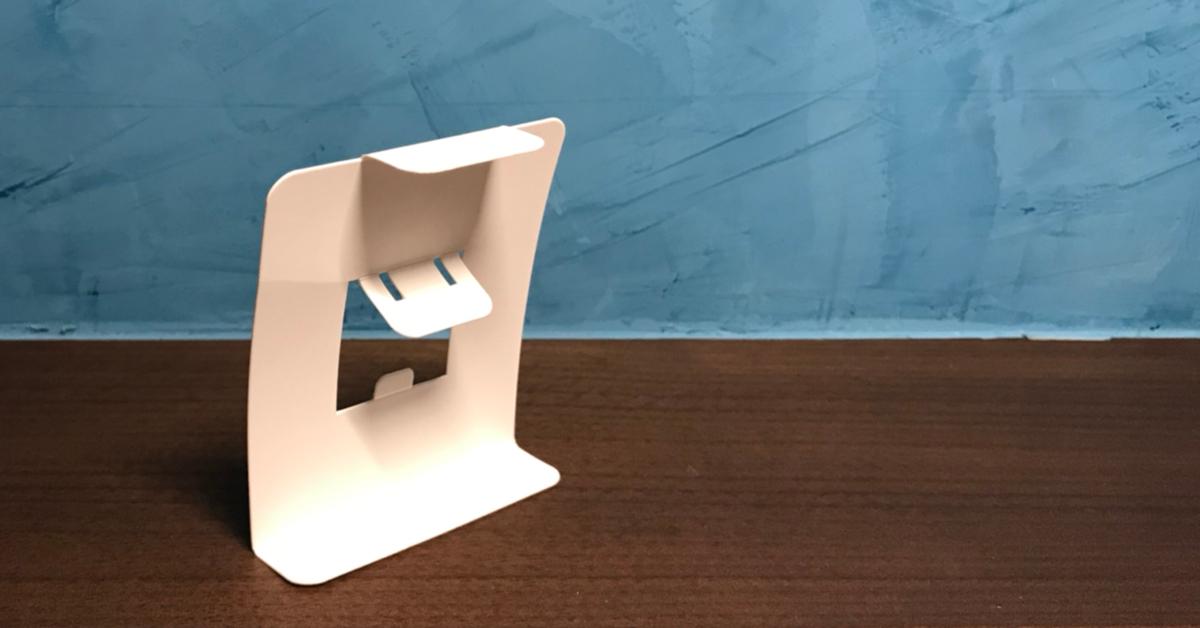

Paper Liner
Inside the box, besides the instruction manual, there's a paper liner to secure the product (the adapter). The paper liner has no printing and uses 46-point white cardstock with a matte finish on one side and rounded corners on all four edges. This simple white card design effectively secures the plug, preventing it from moving around inside the box.
White card dimensions: approximately 109*65 mm

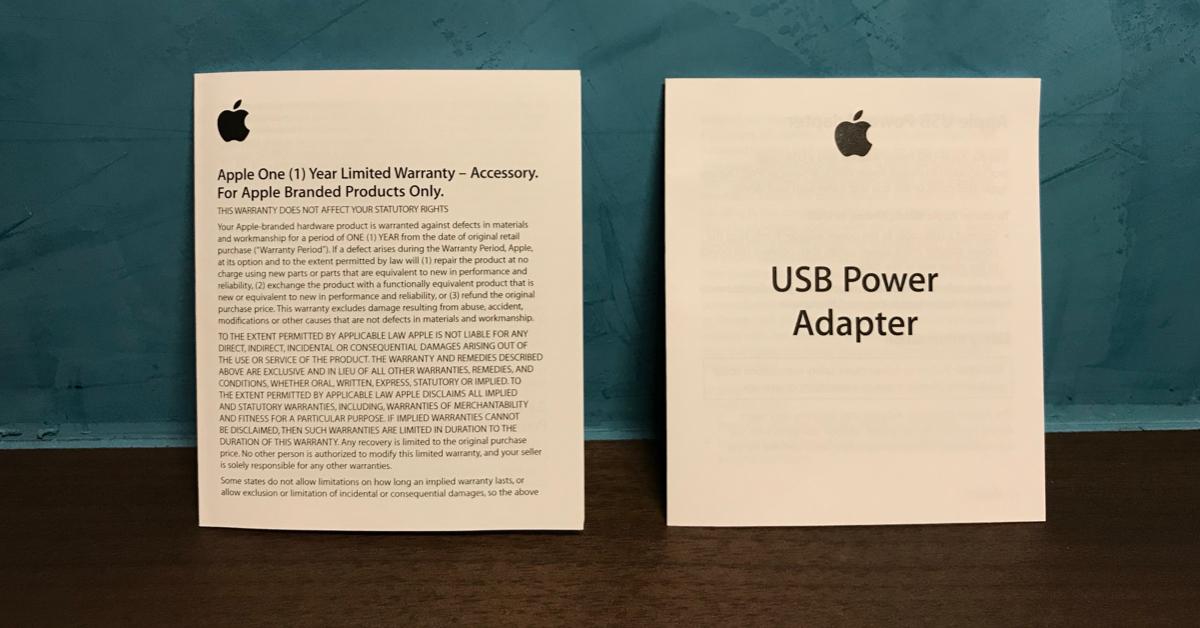

Instruction Manual
Inside the box are two small booklets: one is a multi-language warranty manual, and the other contains safety information and technical specifications (English and Traditional Chinese). What's special about these booklets is that they don't use staples but are bound with 'glue' to attach each page.
Warranty Manual (Multi-language)

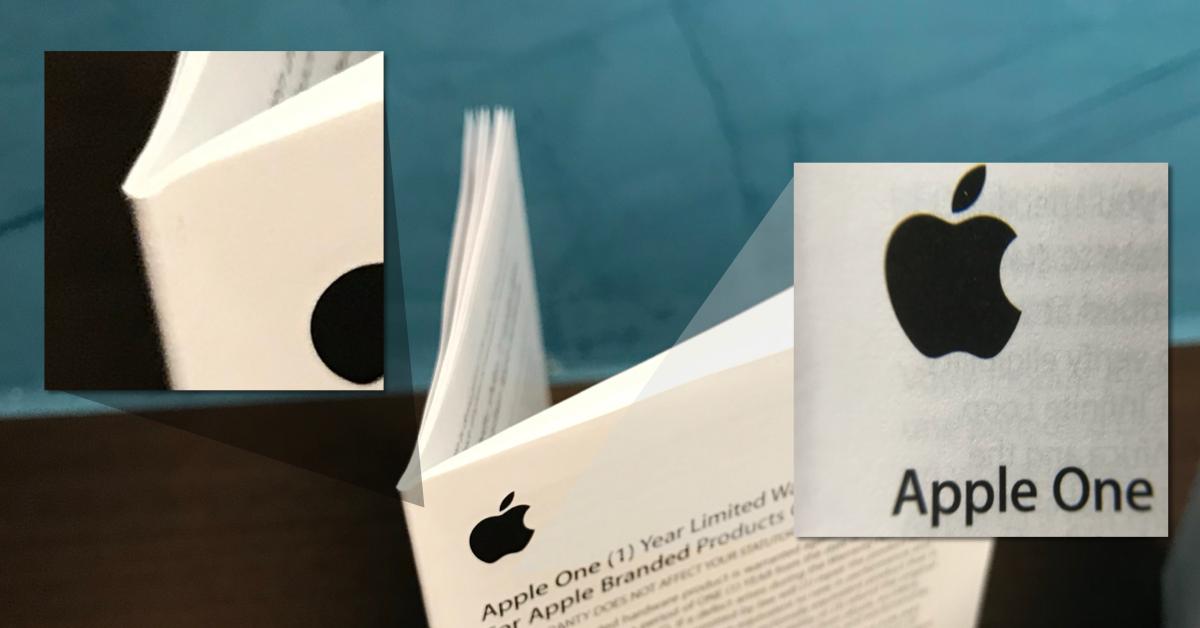

The warranty manual consists of 16 sheets, folded to create 32 pages, printed in single color. Each sheet has a thickness of 6 points, with a total thickness of 93 points. From the small image on the top left, it can be seen that each page is individually glued together without any staple marks. From the small image on the top right, when the warranty manual's cover is magnified, no printing dots are visible.
Manual dimensions: approximately 75.5*65 mm
Safety Information & Technical Specifications Manual (English, Traditional Chinese)

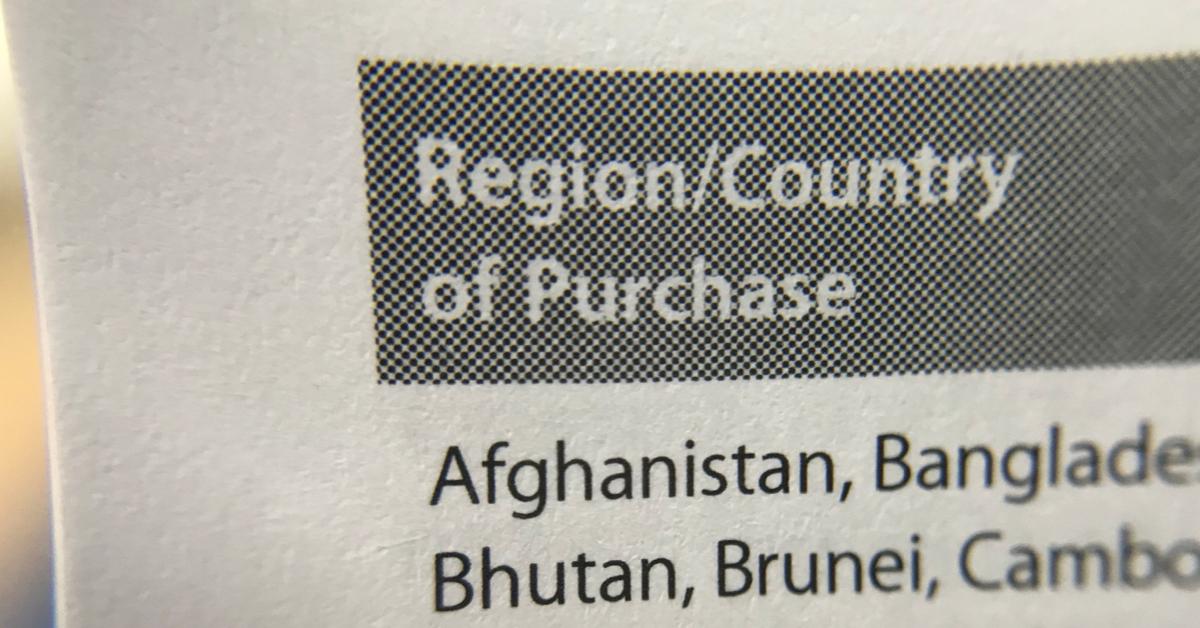

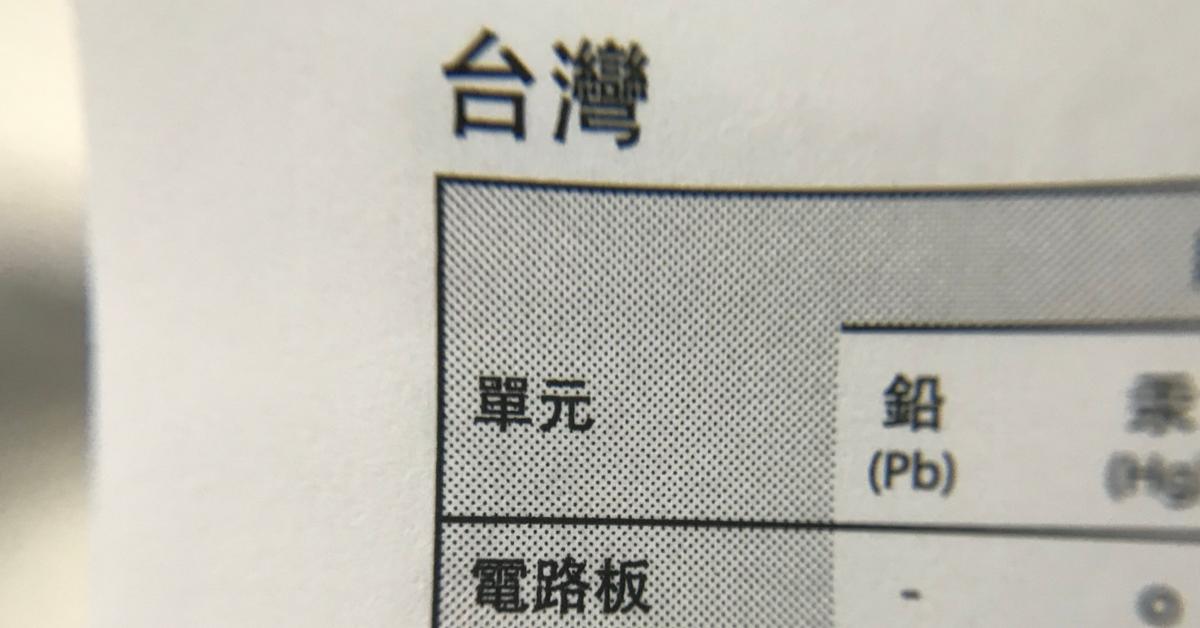

This booklet is made in a similar way to the warranty manual, using 6-point paper with single-color printing, total thickness of 35 points, 6 sheets folded into 12 pages, no binding staples, but from the back page, obvious printing dots can be seen.
Manual dimensions: approximately 75.5*65 mm
