First opened on July 15, 2017, with a limited quantity of 100 special instruments.
Introduction
It has an 8cm working distance and approximately 10μm resolution, but the image contrast and light illumination uniformity are not as good as the original USB camera lens.
The self-made lens comes with an aperture, and the front end can connect to an optical component mount. The lens length is adjustable, allowing you to combine optical components to achieve various required magnifications, apertures, and working distances.
Provides a connector for universal module objective mounts, allowing the use of microscope lenses.
Due to the inability to coat the lens and its shape design, although it has good resolution with an 8cm working distance and approximately 10μm resolution in the original design, the image contrast and light illumination uniformity are not as good as the original USB camera lens.
If you have strong requirements for these aspects, you can use it without modification, purchase a good CCTV lens of 16mm or larger, use a microscope objective, or use a telephoto module lens.
Registration Contents

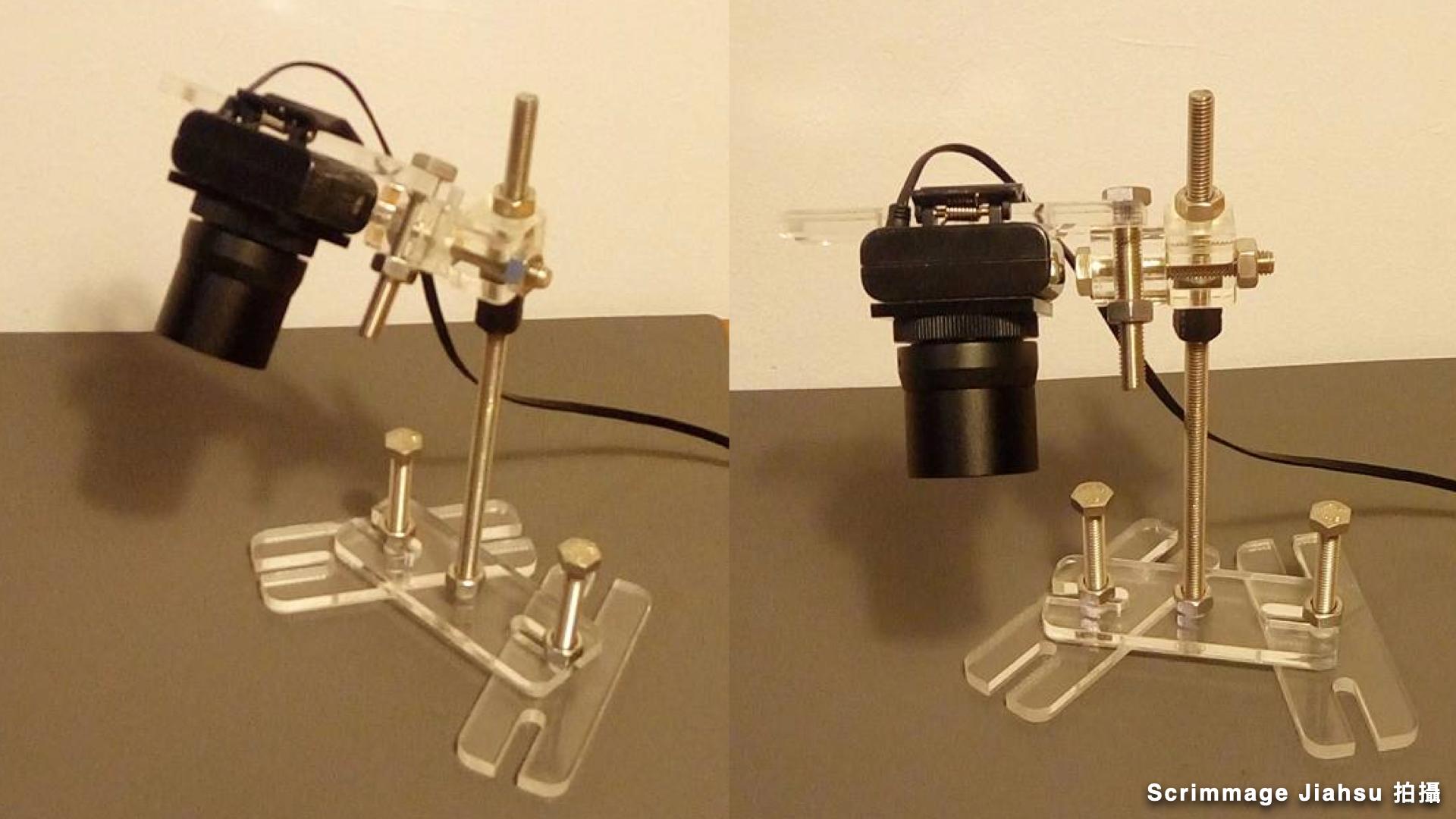

1. Lens Mount (composed of scientific building block components and 15cm threaded rod, adjustable height and viewing angle)
2. Illumination Light and Light Stand (Golden Image Module)
3-a. USB Camera with Self-made Lens (modified with C mount connector)
3-b. Or Unmodified USB Camera
Related Discussion Forum
Related discussions and materials can be found in the dedicated group SciLens Physical Microscope/Long-term Observation.
